Good product, easy to install and commission. I bought two 314AH home storage. I just hoped it has WIFI connectivity for easier remote monitoring.
Working perfectly as advertised
Easy to put on the wall and connect.
Thank you
| Mechanical | Plastic Case | ABS |
| Size | 635 x 244 x 218 mm / 25.00 x 9.61 x 8.58 in | |
| Weight | 50.75+0.5kg/111.88+1.10 lb | |
| Electrical Characteristics |
Nominal Voltage | 12.8V |

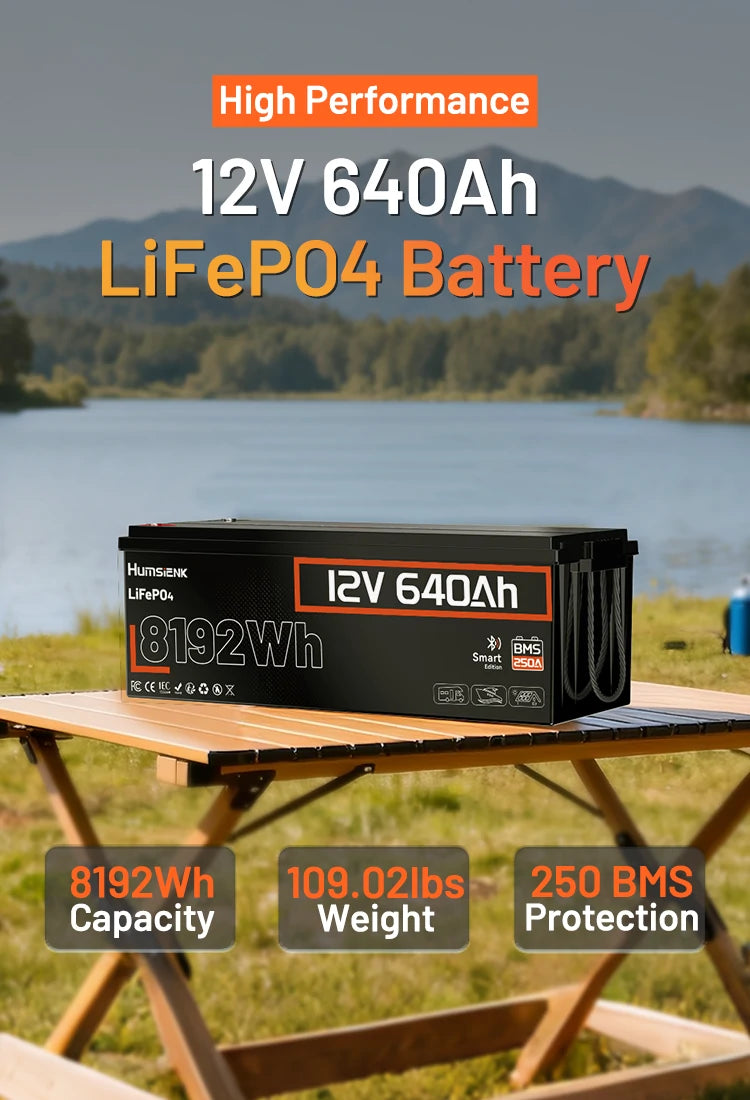

| Nominal Capacity | 640Ah | |
| Energy | 8192Wh | |
| Terminal | M8 | |
| Cycle Life | 6000@DOD80% | |
| Months Self Discharge | s3%/Month | |
| Efficiency Of Charge | 100%@0.2C | |
| Efficiency Of Discharge | 96~99%@0.5C | |
| Standard Charge | Charge Voltage | 14.4V+0.2V |
| Charge Mode | CC/CV | |
| Charge Recommended Current | 128A | |
| Max. Continuous Charge Current | 250A | |
| Standard Discharge | Discharge Recommended Current | 200A |
| Max. Continuous Discharge Current | 250A | |
| Discharge Cut-Off Voltage | 10V | |
| Environmental | Charge Temperature | 32°F~113°F/0℃C~45°C |
| Discharge Temperature | -4°F~149°F/-20°C~65°C | |
| Storage Temperature | -4°F~113°F/-20°C~45°C | |
| Ingress Protection Rating | IP65 |
